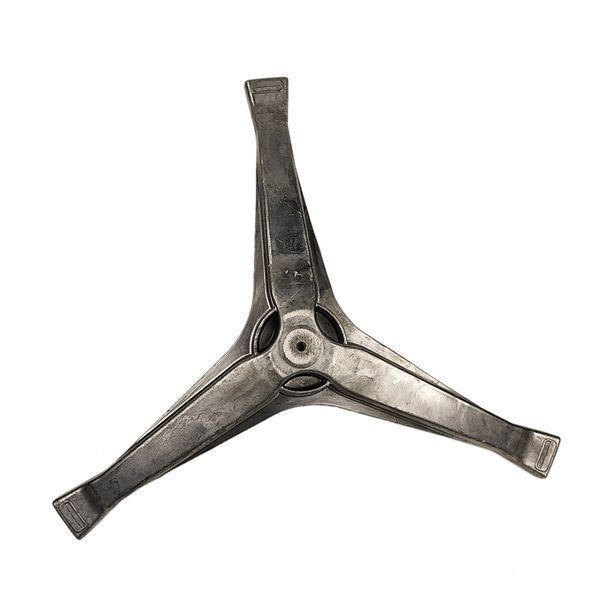

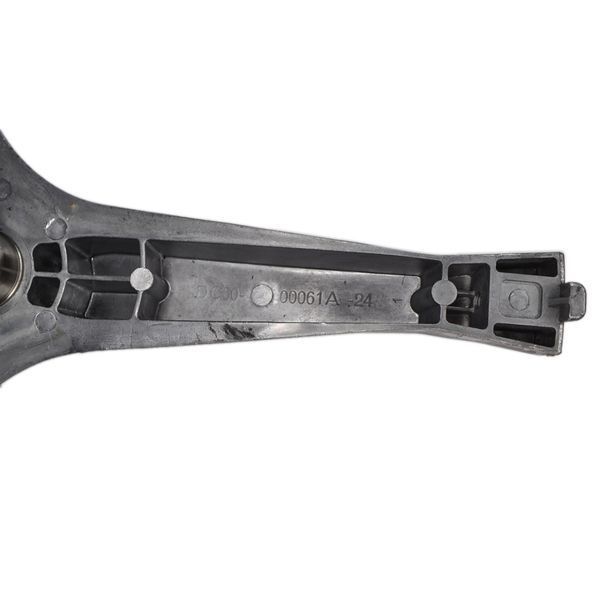

Крестовина барабана Samsung DC97-15184A (D вала = 35/30/25 мм, L вала = 126 мм), Original
Оригинальные коды, парт-номера запчасти и её замены: DC97-15184A.
Может использоваться как аналог (замена) крестовинам: DC97-15963B, DC60-00078A, DC97-15963A.
Оригинальная запчасть для замены повреждённой.
Крестовина под подшипники 6206 и 6205, под сальник 35×65,55×10/12. Ремкомплект подшипников с сальником также можно приобрести в нашем магазине.
В случаях, когда родное крепление крестовины к барабану повреждено, его можно приобрести отдельно. Крепление состоит из трёх винтов под шестигранник или под ключ — на выбор.
Параметры крестовины:
- посадка большого подшипника – 30 мм (под 6206);
- посадка меньшего подшипника – 25 мм (под 6205);
- диаметр втулки под сальник – 35 мм (под 35×65,55×10/12);
- расстояние от оси вала до оси крепления барабана – 246 мм;
- общая длина вала – 126 мм;
- диаметр под шкив – 23 мм;
- крепление шкива – болтом М10 (болт в комплект не входит).
Совместима с такими моделями:
B1015W; B1022; B1030S; B1225/HAC; B1225GSC; B1225GWW; B1225S/HAC; B1226/HAC; B1226S/HAC; B1228; B1228S; B1230NSC; B1230NWC; B1275S; B1275W; B1288NSC/HAC; B1288NWC/HAC; B1289NSCUU/HAC; B1289NWCUU/HAC; B1483; J1025/HAC; J1026/HAC; J1028; J121NSH/HAC; J121NWH/HAC; J1230YSS/HAC; J1230YWS/HAC; J1235C/HAC; J1235S/HAC; J1235YSS; J1235YWS; J1236C/HAC; J1236S/HAC; J1238C; J1238S; J123YSS/HAC; J123YSSUU/HAC; J123YWS/HAC; J123YWSUU/HAC; J1240GSS; J1240GSS/HAC; J1240GSSUU/HAC; J1240GWW; J1240GWW/HAC; J1240GWWUU/HAC; J1250NWH; WF0600NCE; WF0600NCE/YL; WF0600NCW; WF0600NCW/YL; WF0604ABW; WF0604NBE; WF0604NBW; WF0604YJW/XEG; WF0614ABW; WF0650NHW/XTC; WF0690NRW; WF0690NRW/YLP; WF0692NRY/YLP; WF0700N6W/YAH; WF0700N6W/YMF; WF0700NBE; WF0700NBE/XEP; WF0700NBE/XET; WF0700NBE/YLV; WF0700NBW/XET; WF0700NBX; WF0700NBX/YLP; WF0700NBX1/YLP; WF0700NCE/XEH; WF0700NCE/YAH; WF0700NCE/YLE; WF0700NCS/XFA; WF0700NCS/YAH; WF0700NCS/YMF; WF0700NCS6; WF0700NCS6/YAH; WF0700NCW; WF0700NCW/GU; WF0700NCW/XEC; WF0700NCW/XEP; WF0700NCW/XSG; WF0700NCW/YAH; WF0700NCW/YLP; WF0700NHM; WF0700NHM/XSH; WF0702NBE; WF0702NBE/XEF; WF0702NBE/XEU; WF0702NBF; WF0702NBF/YLD; WF0702NBF/YLP; WF0702NBF1/YLP; WF0702NBS; WF0702NBS/XEF; WF0702NCE/XEH; WF0702NCE/XET; WF0702NCE/XSE; WF0702NCW; WF0702NCW/XEC; WF0702NCW/XEH; WF0702NCX; WF0702NCX/XEC; WF0702NHL; WF0702NHL/XSC; WF0702NHM; WF0702NHM/XSC; WF0702NHS; WF0702NHS-XSC; WF0702WJS/YMF; WF0702WJV/XEO; WF0702WJV/YMF; WF0702WJW; WF0702WJW/YLP; WF0702WJWD; WF0702WJWDYLP; WF0702WKC/YFQ; WF0702WKE; WF0702WKE/XEU; WF0702WKE/XSH; WF0702WKE/YLP; WF0702WKEDYLP; WF0702WKN/XEO; WF0702WKN/XTL; WF0702WKQ; WF0702WKQ/XSC; WF0702WKR; WF0702WKR/XSC; WF0702WKU; WF0702WKU/XEU; WF0702WKV; WF0702WKV/YLP; WF0702WKVDYLP; WF0752WJN/XPE; WF0752WJN/XZS; WF0752WJW/XPE; WF0752WJW/XZS; WF0790NCX; WF0790NCX/YLO; WF0792NCS; WF0792NCS/YMF; WF10614YKE/XEG; WF10624YJV/XEG; WF10634YJV/XEG; WF10634YKV/XEG; WF10654YJV/XEG; WF10664YJW/XEG; WF10684YJE/XEG; WF10694YJV/XEG; WF1602W5V; WF1602W5V/YL; WF1604YKE/XEN; WF1614ABW/XEG; WF1614YKE/XEN; WF1700NHW/XEO; WF1700NHW/XET; WF1700NHW/YLE; WF1700W5V/XET; WF1700W5V/YKJ; WF1700W5W; WF1700W5W/UA; WF1700W5W/XET; WF1700W5W/YLP; WF1700WCC/XEO; WF1700WCW; WF1700WCW/UA; WF1700WCW/YLP; WF1700WRW; WF1700WRW/YLP; WF1702NC; WF1702NCS/XSC; WF1702NCW; WF1702NCW/XSC; WF1702NHV; WF1702NHV/XEE; WF1702NHV/XEO; WF1702NHW; WF1702NHW/XEC; WF1702NHW/XEO; WF1702NHW/YLE; WF1702NHWG; WF1702NHWG/XEC; WF1702NHWG/XEE; WF1702NHWG/YLE; WF1702W5S; WF1702W5S/XFA; WF1702W5S/XSG; WF1702W5S/YAS; WF1702W5S/YFH; WF1702W5S/YLO; WF1702W5SU; WF1702W5SU/YAS; WF1702W5V/XEC; WF1702W5V/XEO; WF1702W5V/XSG; WF1702W5V/YAH; WF1702W5V/YKJ; WF1702W5V/YLE; WF1702W5W; WF1702W5W/GU; WF1702W5W/XFA; WF1702W5W/XSG; WF1702W5W/YAH; WF1702W5W/YFH; WF1702W5W/YLO; WF1702WCC; WF1702WCC/XEO; WF1702WCC/YLP; WF1702WCS; WF1702WCS/XSC; WF1702WCW; WF1702WCW/XSC; WF1702WEC; WF1702WEC/XFA; WF1702WEC/YFH; WF1702WECU; WF1702WECU/XBG; WF1702WEU; WF1702WEU/XFA; WF1702WEU/XSG; WF1702WEUU; WF1702WEUU/XBG; WF1702WEWU; WF1702WEWU/XBG; WF1702WQN; WF1702WQN/YAH; WF1702WQR/YAH; WF1702WQU; WF1702WQU/XSC; WF1702WQU/XSG; WF1702WQU/YFH; WF1702WRK; WF1702WRK/YLP; WF1702XQR; WF1702XQR/UA; WF1702XQR/YLP; WF1702YQB; WF1702YQB/YLP; WF1702YQC; WF1702YQC/YLP; WF1702YQQ; WF1702YQQ/YLP; WF1702YQR; WF1702YQR/YLP; WF1752WQR/XSV; WF1752WQU9/XSV; WF1762W5C/YLO; WF1762W5S; WF1762W5S/YLO; WF1762W5SU/YLO; WF1762W5W/YLO; WF1762W5WU/YLO; WF1792W5C/YAM; WF1792W5S; WF1792W5S/YAM; WF1792WEC; WF1792WEC/YMF; WF1792WQR; WF1792WQR/YAM; WF1792WQR/YMF; WF2652WQS/XTL; WF2652WQSU/XTL; WF600B4BKWQ; WF600B4BKWQ/EE; WF600B4BKWQ/EF; WF602B4BKWQ; WF602B4BKWQ/EE; WF602W2BDWQ/YL; WF602W2BDWQH; WF6604NHWG/XEG; WF6612NHWG/XEG; WF6614NHWG/XEG; WF700B0BDWQ; WF700B0BDWQ/LP; WF700B0BDWQDLP; WF700B2BKWQ; WF700B2BKWQ/EC; WF700B2BKWQ/EF; WF700B2BKWQ/LV; WF700U0BDWQ; WF700U0BDWQ/LP; WF700U0BDWQDLP; WF700W0BDWQ; WF700W0BDWQDLP; WF700W2BCWQ/FQ; WF700W2BCWQ/MF; WF700W2BCWQ/SE; WF700W2BCWQ/ST; WF700W2BCWQ1ST; WF701U2BDWQ/SC; WF701W2BDWQ/SC; WF702B2BBWQ; WF702B2BBWQ/LP; WF702B2BBWQDLP; WF702B2BKWQ; WF702B2BKWQ/EC; WF702B2BKWQ/LE; WF702B2BKWQ/LV; WF702U2BBGD; WF702U2BBGD/SC; WF702U2BBSD; WF702U2BBSD/SC; WF702U2BBWQ; WF702U2BBWQ/LP; WF702U2BBWQ/SH; WF702U2BBWQ/UA; WF702U2BBWQDLP; WF702U2BDSD/SC; WF702U2BKSD/MF; WF702U2BKWQ/SP; WF702U2BKWQ/TC; WF702U2SAWQ/LE; WF702W0BDWQ; WF702W0BDWQ/LP; WF702W0BDWQ/UA; WF702W0BDWQDLP; WF702W2BBWQ; WF702W2BBWQ/LD; WF702W2BBWQ/LP; WF702W2BBWQ/UA; WF702W2BBWQDLP; WF702W2BCSD; WF702W2BCSD/GU; WF702W2BCSD/MF; WF702W2BCSD/SG; WF702W2BCSDUAS; WF702W2BCWQ; WF702W2BCWQ/AH; WF702W2BCWQ/FQ; WF702W2BCWQ/GU; WF702W2BCWQ/SG; WF702W2BCWQUAS; WF702W2BDSD/SC; WF706U2SAWQ; WF706U2SAWQ/TL; WF750B2BDWQUTL; WF750W2BCWQ/SV; WF752U2BKWQ/SE; WF752U2BKWQ/SV; WF752U2SAWQ/SP; WF752W2BCWQ/SE; WF752W2BCWQ/SV; WF756U2SAWQ/SE; WF762U2BKWQ; WF762U2BKWQ/LO; WF790W2BCWQ/YA; WF792U2BKWQ/SV; WF792W2BCSD/YA; WF8600NGU; WF8600NGW; WF8600NHW; WF8600NHW/XEH; WF8600NHW/YAH; WF8600NHW/YL; WF8600NHW/YLP; WF8600NHWU/XSV; WF8600SFV/YAH; WF8602NFS; WF8602NFW; WF8602NGS; WF8602NGV; WF8602NGW; WF8602NGY; WF8602NHS; WF8602NHV; WF8602NHW; WF8602NHWG; WF8602NHWG/XEN; WF8602SEA; WF8602SER; WF8602SFS; WF8602SFV; WF8604AFC/XEN; WF8604AFV; WF8604AFW; WF8604FEA; WF8604FEC/XEN; WF8604FEV/XAG; WF8604FFW; WF8604GEV; WF8604NFS; WF8604NFW; WF8604NGS; WF8604NGV; WF8604NGW; WF8604NHS; WF8604NHW; WF8604NHWG; WF8604NQW/XEO; WF8604SEA; WF8614AFV; WF8614FEA; WF8614FEC/XEN; WF8614FH; WF8620NGW; WF8620NHW; WF8622NGW; WF8622NHW; WF8622SFV; WF8624NGW/YLE; WF8650NHCU; WF8650NHCU/XTL; WF8650NHW; WF8650NHWU; WF8652NFV; WF8652NGW/YL; WF8652NHS/XTL; WF8652NHSU/XTL; WF8652SEA; WF8652SEA1/XTL; WF8652SEAU/XTL; WF8652SFCU/XSV; WF8690FEA; WF8690FEA/YLP; WF8690FEH/YLP; WF8690FFV; WF8690FFV/YLP; WF8690NEG/YAM; WF8690NGV; WF8690NGW/XSV; WF8690NGW1/XSV; WF8690NGWU/XSV; WF8690NHG/YAM; WF8690NHGU/YAM; WF8690NHS; WF8690NHS/YFH; WF8690NHV/YAM; WF8690NHW; WF8690NHWA; WF8690NHWU; WF8692FEA; WF8692FEA/YLP; WF8692FER; WF8692FER/YLD; WF8692FFC; WF8692NEC; WF8692NECU/YAK; WF8692NEUU/YAK; WF8692NFU/XSG; WF8692NFV; WF8692NFV/XSG; WF8692NGV; WF8692NHS; WF8692NHSU; WF8692NHSU/YLO; WF8692NHV/YLO; WF8692NHVU/YLO; WF8692NHW; WF8692NHW/CD; WF8692NHW/XSG; WF8692SEA; WF8692SFU/XSG; WF8692SFV/XSG; WF9600NHS; WF9600NHW; WF9602NQR/YAH; WF9602SQR; WF9604SRW; WF9622SQR; WF9652NQQ; WF9654SQR; WF9690NRW; WF9690NRW/YLP; WF9692GQR; WF9692GQR/YLP; WF9692SQR; WF9692SQR/YLP; WF9700N3W; WF9700N5V/XET; WF9700N5W; WF9700N5W/XET; WF9700N5W/XSH; WF9700N5W/YAH; WF9700N5W/YLV; WF9702N3C; WF9702N3C/YLE; WF9702N3W; WF9702N3W/XEC; WF9702N3W/YLE; WF9702N5V/SWS; WF9702N5V/XEO; WF9702N5V/XET; WF9702N5W; WF9702N5W/XEC; WF9702N5W/XEP; WF9702N5W/XET; WF9702N5W/XEU; WF9702N5W/YLE; WF9702N5W/YLV; WF9752N5C/XSV; WF9752N5W/SV; WF9752SRC1/XSV; WF9752SRCU/XSV; WF9754SRY1/XSV; WF9754SRYU/XSV; WF-M702YQR; WF-M702YQR/YLP; WW60J3063KW/YL; WW65J3263IW/NZ; WW70H5200EW/AH; WW70H5200EW/SP; WW70H5200EW/TC; WW70H5210ES/MF; WW70H5240EW/ST; WW70H5240EW/YL; WW70H5240EW1ST; WW70H5240EWH; WW70H5250ES/MF; WW70H5290EW/AH; WW70H5290EW/MF; WW70J3080GS/LO; WW70J3080GSULO; WW70J3083KW/AH; WW70J3083KW/LO; WW70J3083KWULO; WW70J3237KW/SC; WW70J3263KW/AH; WW70J3263KW/AS; WW70J3263KW/CD; WW70J3263KW/FQ; WW70J3263KW/NQ; WW70J3267KW/EF; WW70J3280GS/MF; WW70J3280KW/GU; WW70J3283IW/GU; WW70J3283KW; WW70J3283KW/AH; WW70J3283KW/AS; WW70J3283KW/BS; WW70J3283KW/EC; WW70J3283KW/EE; WW70J3283KW/EF; WW70J3283KW/EO; WW70J3283KW/EU; WW70J3283KW/FH; WW70J3283KW/GG; WW70J3283KW/GU; WW70J3283KW/LE; WW70J3283KW/NQ; WW70J3283KW/SE; WW70J3283KW/SG; WW70J3283KW/ST; WW70J4033KW/SV; WW70J4210GS/FH; WW70J4210GS/GU; WW70J4210GS/SG; WW70J4210GW; WW70J4210GW/FH; WW70J4210GW/UA; WW70J4213IW; WW70J4213IW/FQ; WW70J4213IW/GU; WW70J4213IW/SG; WW70J4213IW/SH; WW70J4213IW/ST; WW70J4213IW/UA; WW70J4233KW/FQ; WW70J4233KW/SC; WW70J4233KW/SE; WW70J4233KW/SP; WW70J4233KW/ST; WW70J4233KW/SV; WW70J4243JS; WW70J4243JS/TL; WW70J4243MW; WW70J4243MW/TL; WW70J4260GS/AS; WW70J4260GS/CD; WW70J4260GS/FH; WW70J4260GS/LO; WW70J4260GS/NQ; WW70J4263GS/FA; WW70J4263IW; WW70J4263IW/FA; WW70J4263IW/GU; WW70J4263IW/LO; WW70J4263IW/NQ; WW70J4263IW/SG; WW70J4263IW/SH; WW70J4263JS; WW70J4263JS/TL; WW70J4263KW/AH; WW70J4263MW; WW70J4263MW/EO; WW70J4263MW/TL; WW70J4263MW/UA; WW70J4273MW; WW70J4273MW/EF; WW70J4273MW/EO; WW70J4273MW/LE; WW70J42A3MW; WW70J42A3MW/LV; WW70J4363MW/AH; WW70J4373MA; WW70J4373MA/FH; WW70J4373MA/GU; WW70J5210GW; WW70J5210GW/UA; WW70J5210IW/TL; WW70J5217IW; WW70J5217IW/UA; WW70J5230GS/SC; WW70J5230GW/SC; WW70J5233IW/SC; WW70J5280GS/SC; WW70J5280GW/SC; WW70J5283IW/SC; WW70K5210US/GU; WW70K5213YW/GU; WW75H5200EW/SE; WW75J3083KW/SV; WW75J3083KWUSV; WW75J3283GS/SV; WW75J3283KW/SV; WW75J3283KWUSV; WW75J4213IW; WW75J4213IW/SE; WW75J4213IW/SV; WW75J4213IW/TC; WW75J4233GS/SV; WW75J4233GSUSV; WW75J4233IW/SV; WW75J4233KW/SV; WW75J4233KWUSV; WW75K5210US/SV; WW75K5210YW; WW75K5210YW/SE; WW75K5210YW/ST; WW75K5210YW/SV; WW75K5210YW/TC; WW80J4213GS; WW80J4213GS/TL; WW80J4213KW; WW80J4213KW/TL; WW80J5210IW; WW80J5210IW/TL; WW80K5210WW; WW80K5210WW/TL
